Factory-direct pricing available. MOQ flexible. OEM/ODM customization supported.
One S Series controller can simultaneously manage 4, 6, or 8 security devices, reducing equipment costs and simplifying store operations.
Comes with K9015 remote controller featuring 5-8 meter control range. One remote can control multiple controllers for maximum convenience.
Built-in 90dB alarm siren with LED status indicator immediately alerts staff when any connected device triggers an alarm.

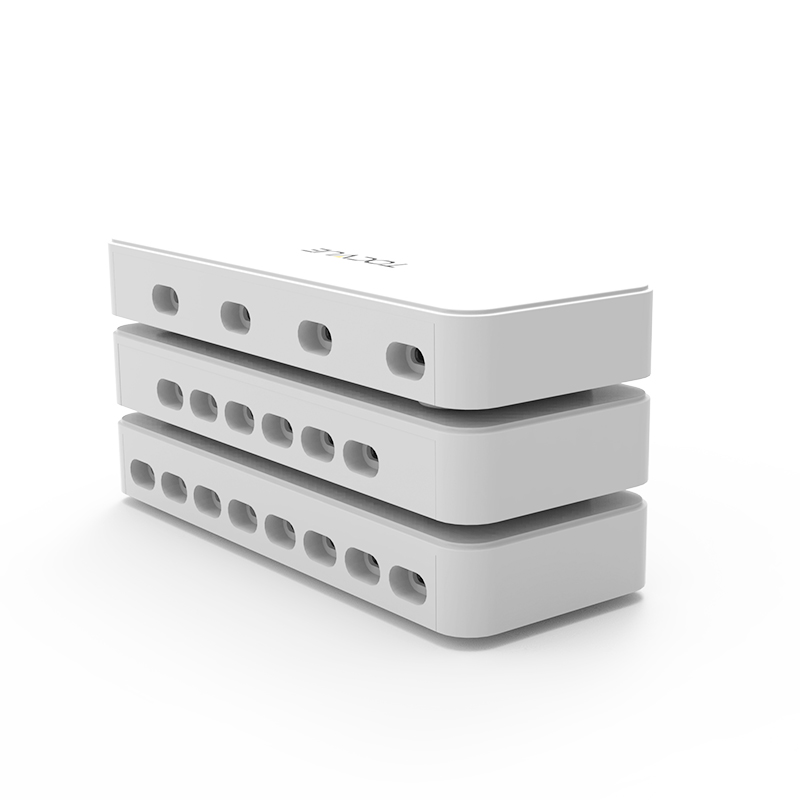

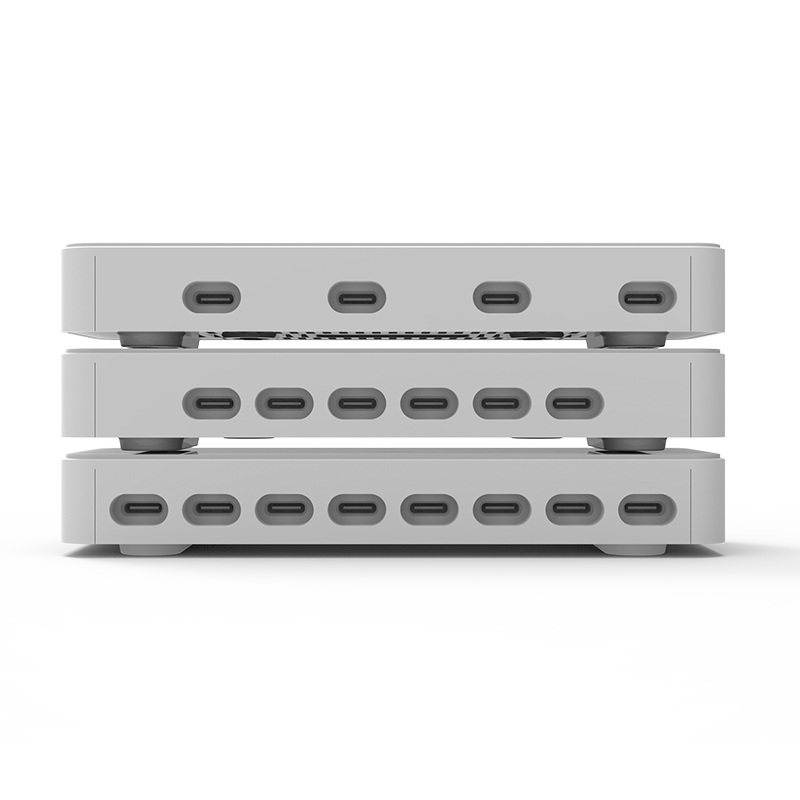

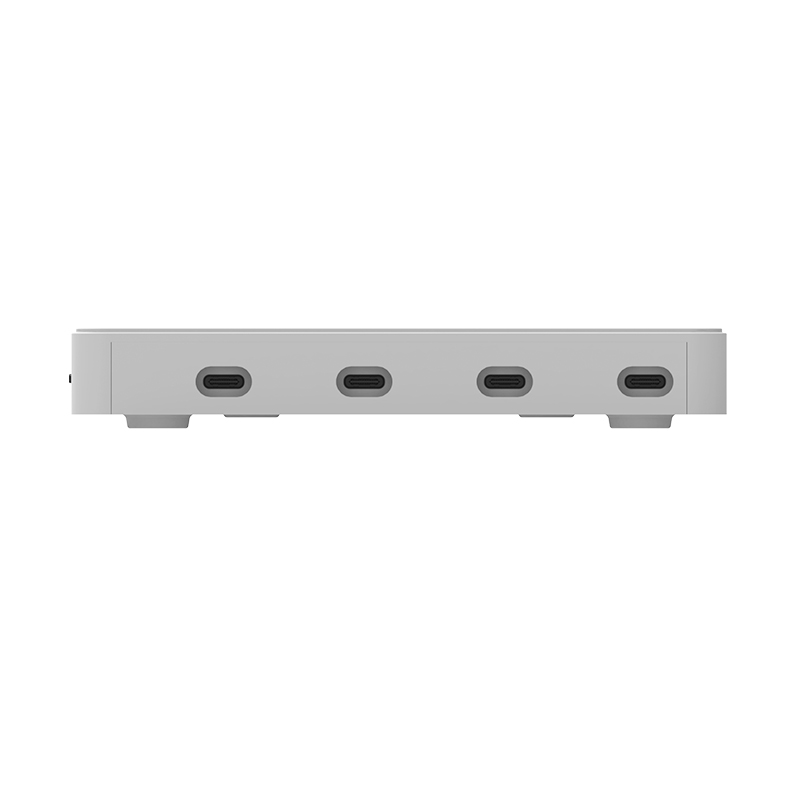

Choose from S400 (4 ports), S600 (6 ports), or S800 (8 ports) based on your display layout and number of devices to secure.
Standard DC power input ensures stable operation. Low power consumption design for continuous 24/7 protection.

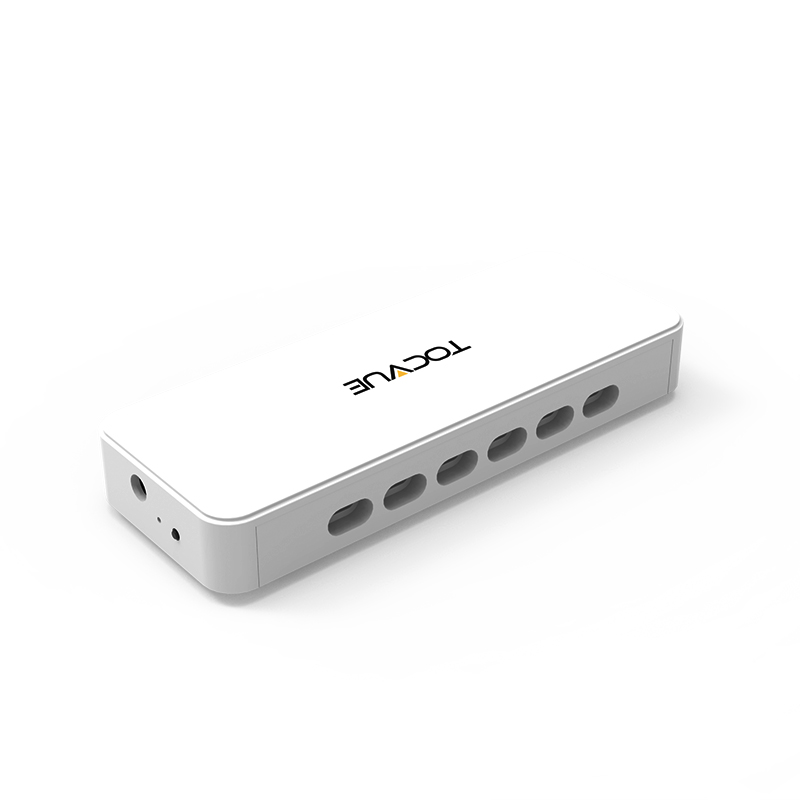

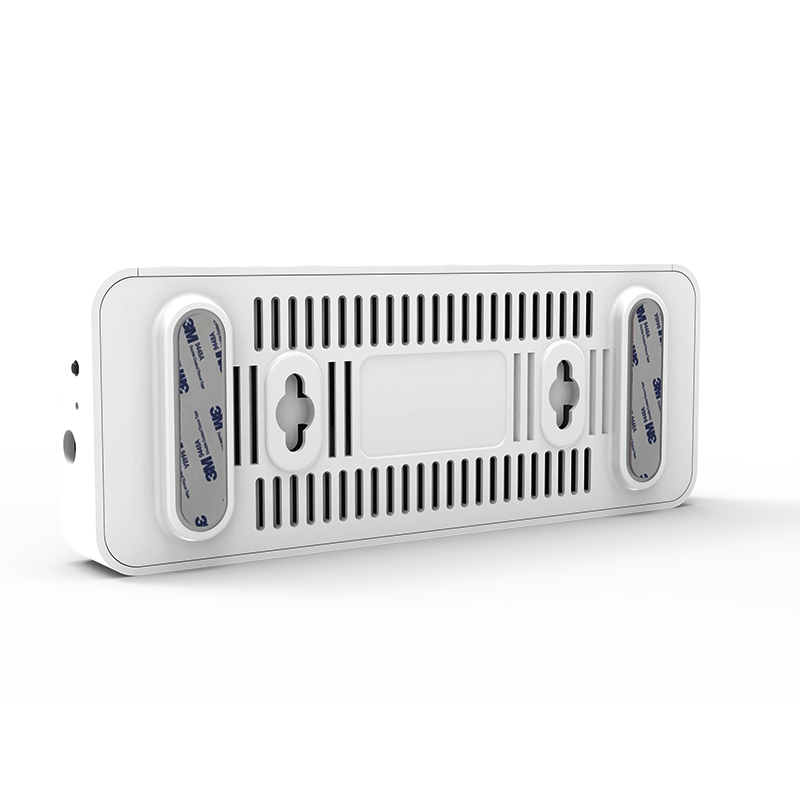

Compact desktop design requires no complex installation. Simply connect your security sensors and power on to start protecting your merchandise.
| Model | S800 | S600 | S400 |
|---|---|---|---|
| Dimension | 140×53.5×21.44mm | 140×53.5×21.44mm | 140×53.5×21.44mm |
| Color | White | White | White |
| N.W | 245g | 230g | 220g |
| Input | 5.5V/10A | 5.5V/10A | 5.5V/6A |
| Output | Max 5.5V/2A of single port | Max 5.5V/2A of single port | Max 5.5V/2A of single port |
| Port Qty | 8 ports outlet | 6 ports outlet | 4 ports outlet |
| Port Interface | USB-C | USB-C | USB-C |
| Alarm Volume | 90dB | 90dB | 90dB |
| Decoder | 315MHz Wireless Remote Control | 315MHz Wireless Remote Control | 315MHz Wireless Remote Control |
| Control Distance | 3-5M | 3-5M | 3-5M |
| Certificate | CE, FCC, ROHs | CE, FCC, ROHs | CE, FCC, ROHs |
* Specifications subject to change without notice. Contact us for the latest datasheet.

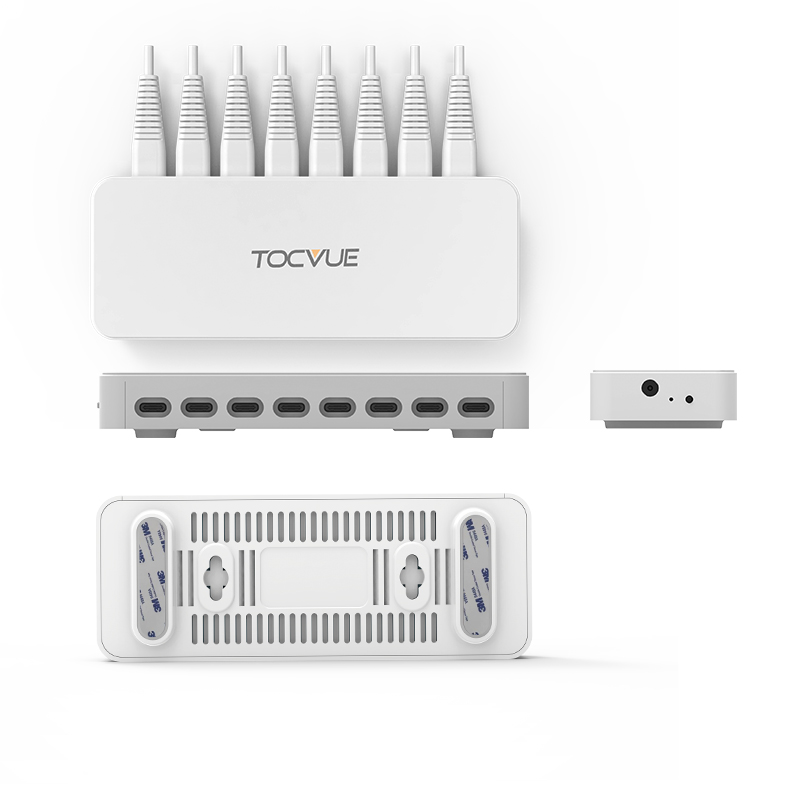

The Tocvue S Series is a centralized security control system designed for retail environments with multiple display devices. Instead of managing individual alarms for each phone or tablet, the S Series allows you to connect and control up to 8 devices from a single controller unit.
The S Series controller connects to individual security sensors (sold separately) via dedicated ports. When any connected sensor detects tampering, disconnection, or cable cutting, the controller immediately triggers the 90dB alarm and flashes the LED indicator. Store staff can arm/disarm the entire system or individual ports using the included K9015 wireless remote.
