T20 / High Security

Titan series / Flagship security display

High-Security Phone Display for High-Risk Retail Counters

T20 is a high-security retail display stand for phones and tablets in high-traffic environments. Its auto-retracting 2.0 mm reinforced steel wire supports hands-on device trial, while device, mount and base alarm monitoring help create a more controlled display.

TRIPLE-DEFENSE ALARMTOP LOCK DOWN10W CHARGING

Device, mount and base alarm monitoring with a 90–100 dB siren
2.0 mm reinforced, auto-retracting steel wire for open display
Configurable brackets, charging cable and mounting method

Get a T20 Recommendation View specifications

MODELT20

ALARM VOLUME90–100 dB

CHARGING OUTPUTMax. 10W

DECODER2.4GHz wireless remote

01 / Security architecture

Three alarm points. One more controlled display.

A high-security display has to protect more than the device itself. T20 monitors the device, its mount and the stand base—while the auto-retracting wire keeps the demo experience open and natural.

01 — Device

Sensor pull-out

The system monitors the device-level security connection and responds if the sensor is pulled out.

02 — Mount

Forced removal

Mount-level monitoring adds another layer when a bracket or display assembly is subjected to forced removal.

03 — Base

Stand detachment

Base-level monitoring helps protect the point where the display stand meets the retail counter.

↘

Optional Top Lock Down for higher-risk zones

A rear mechanical screw lock can be specified to help secure the device against grab-and-run removal in higher-risk store areas.

02 / Configuration

Configure the system around your counter—not the other way round.

Select the bracket, cable, installation method and security mode for the device mix and risk level of each project.

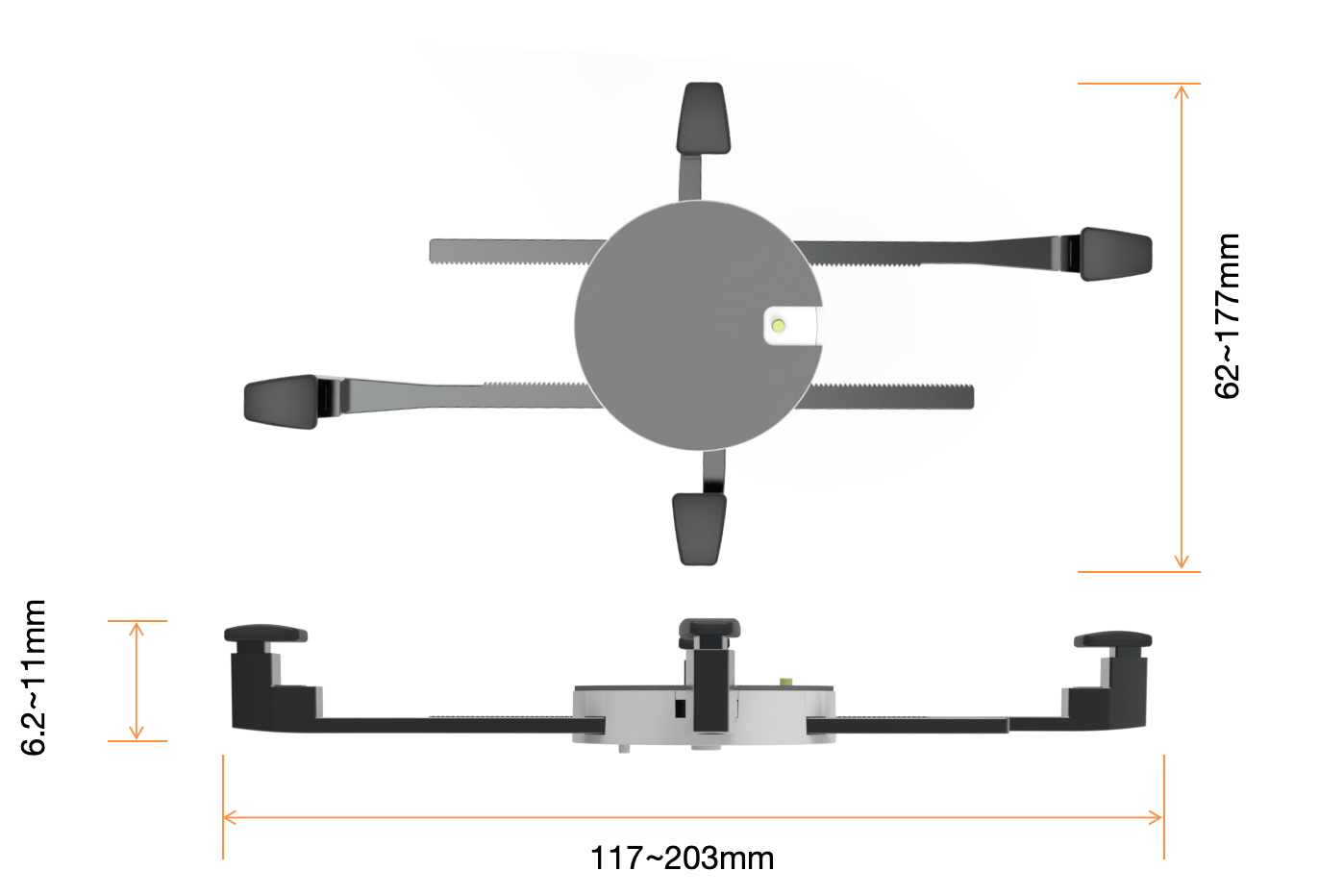

Phones: CM20 or CM40 brackets

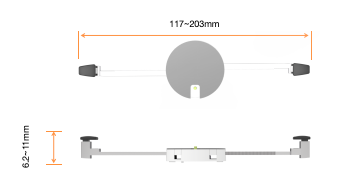

Tablets: CT20 or CT40 brackets
Power: USB-C or Lightning charging options, up to 10W
Mounting: 3M VHB adhesive or through-table screw mount
Security: Standard alarm mode or optional Top Lock Down

03 / Technical specifications

Key details, ready for your brief.

Specifications subject to change without notice. Contact us for the latest datasheet and a project-specific configuration.

ModelT20

Charging OutputMax. 10W (USB-C / Lightning)

Decoder2.4GHz Wireless Remote (K9024, 5–8m range)

Alarm Volume90–100 dB

Steel Wire2.0 mm reinforced, auto-retracting

Mounting / Brackets3M VHB adhesive or through-table screw mount; CM20/CM40/CT20/CT40

04 / Optional accessories

Build the stand around the device.

T20 is compatible with different phone and tablet brackets. Confirm device dimensions before finalizing the configuration.

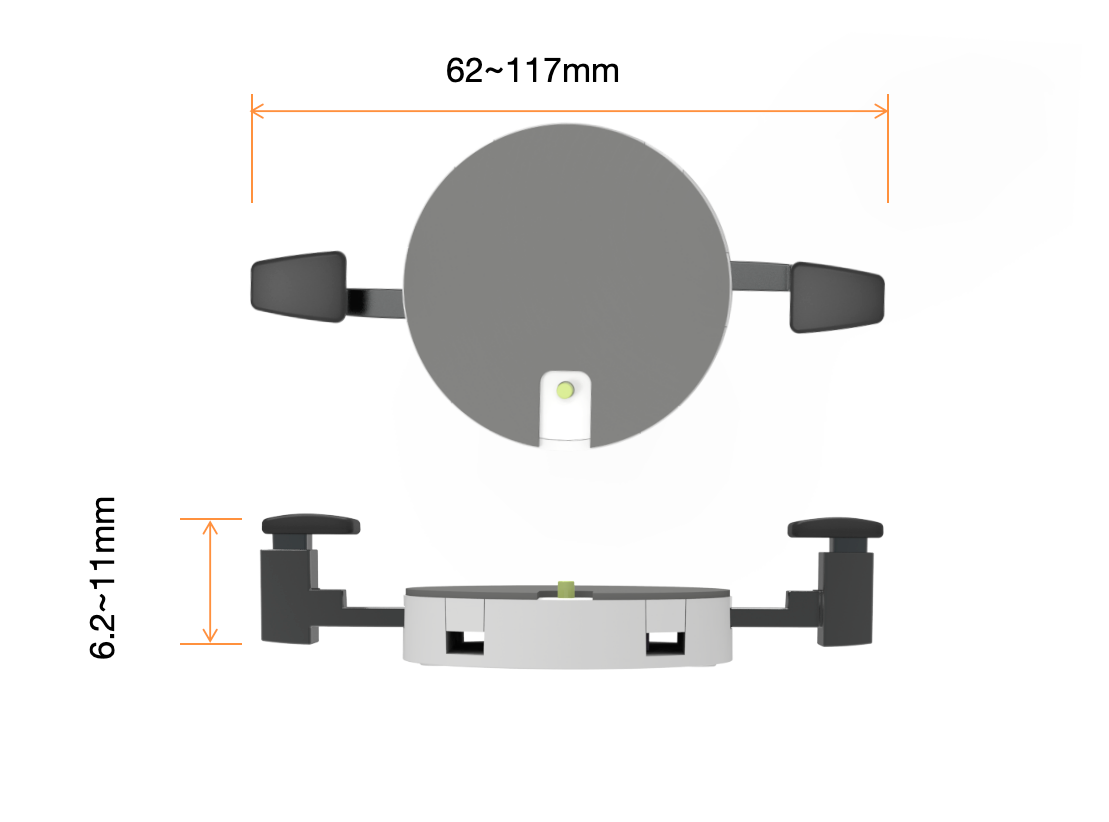

CM20 phone bracket

A phone display configuration for compact device mounting.

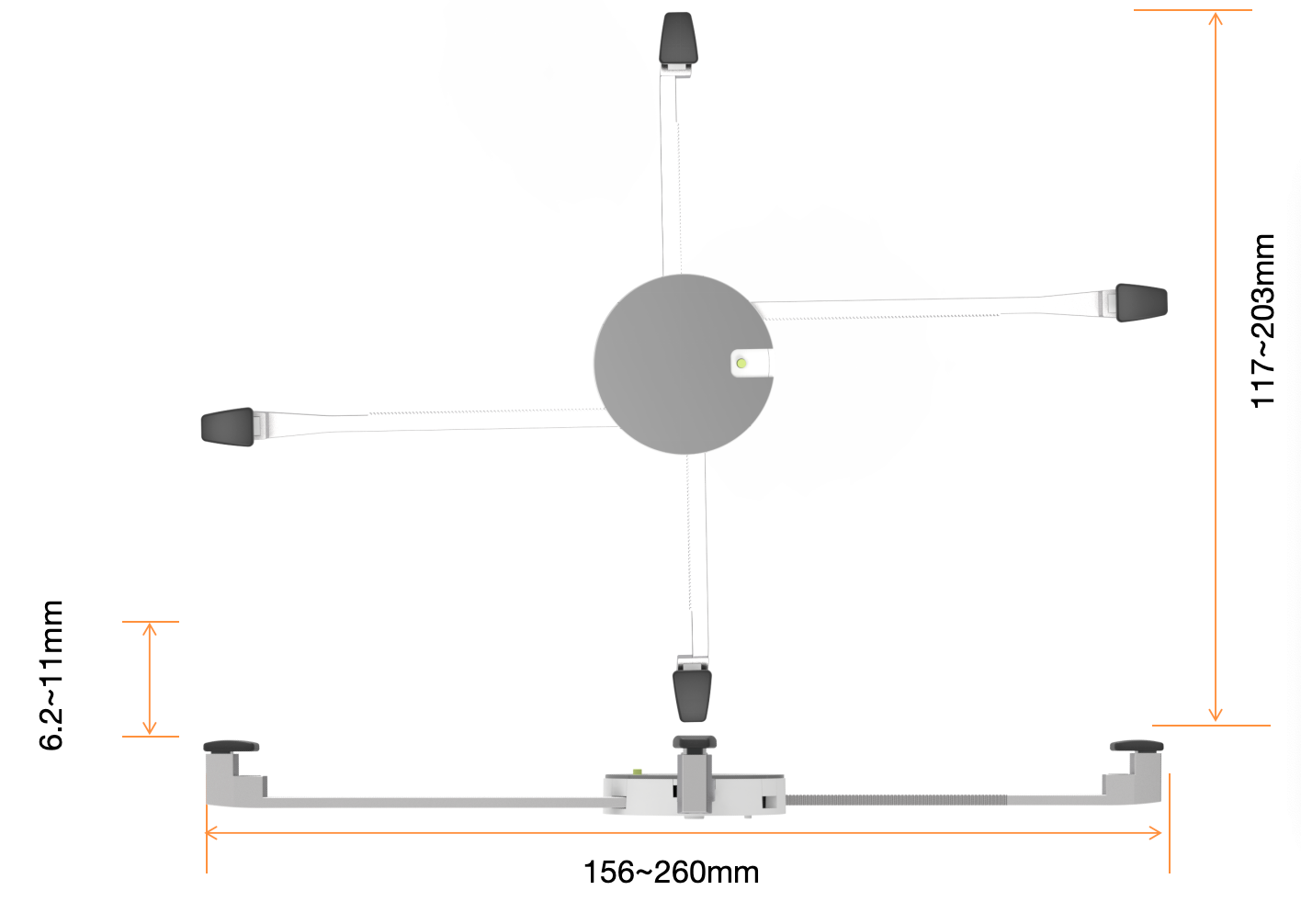

CT40 tablet bracket

A tablet bracket option for larger device display requirements.

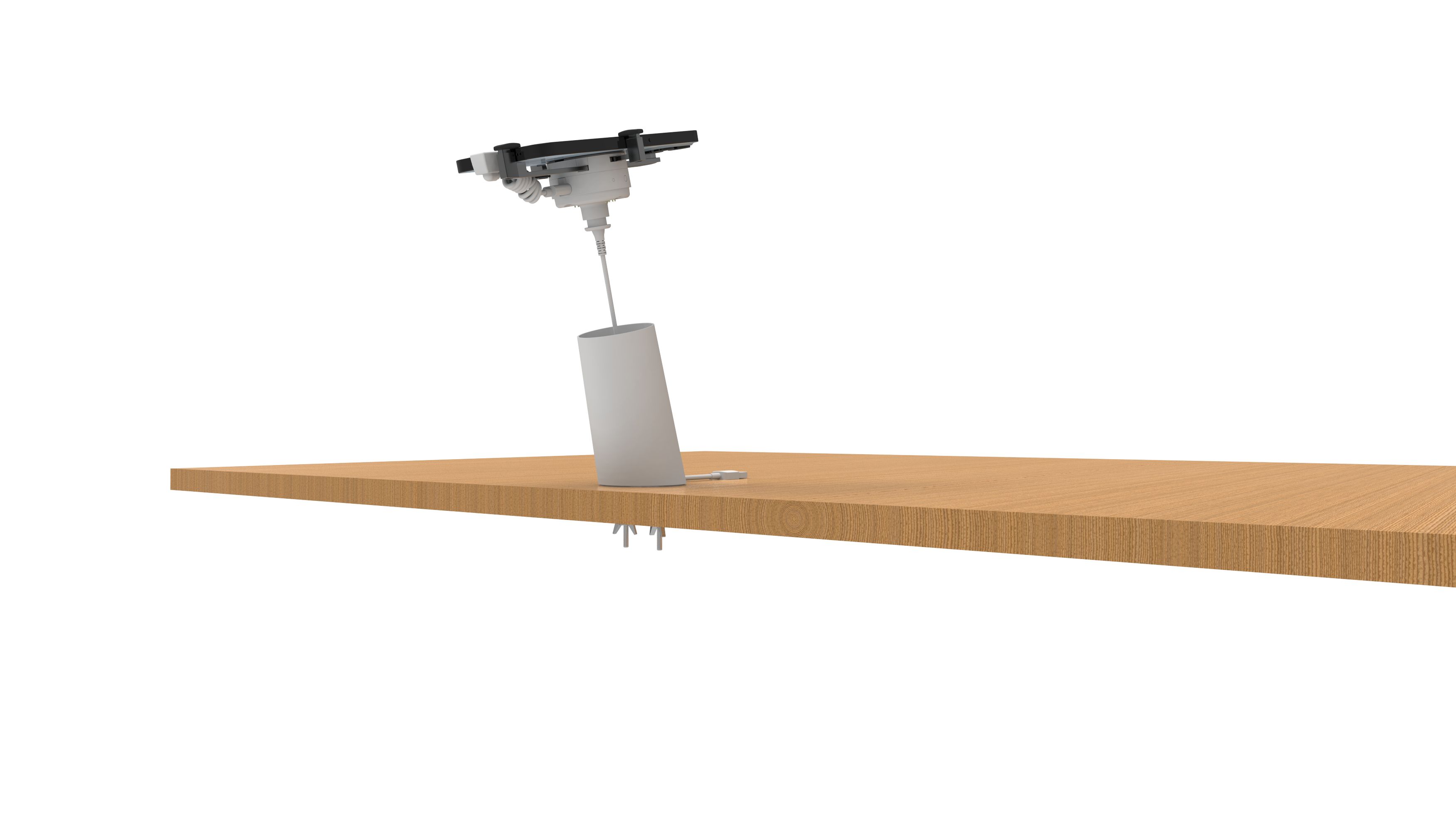

SMT01 screw mount

Securely fix T20 display stands to countertops when the project requires it.

05 / Project questions

Frequently asked questions.

Can T20 be used for tablets?

Yes. T20 supports CT20 and CT40 tablet brackets. Confirm the device dimensions before finalizing a configuration.

Does T20 charge the displayed device?

T20 supports USB-C and Lightning charging options with output up to 10W. Confirm the device interface and charging requirement before ordering.

What makes it suitable for a higher-risk counter?

T20 combines a 2.0 mm reinforced steel wire, device/mount/base alarm monitoring and an optional rear mechanical Top Lock Down mode. Tocvue can recommend a configuration based on the store environment.

T20 project enquiry

Get the T20 configuration that fits your counter.

Share device dimensions, display environment and expected quantity. We will help you select brackets, cable and mounting method.
