01
Make the offer visible
Place specifications, variants, promotion details and pricing under a clear acrylic cover exactly where the buying decision happens.
Flagship ProductSingapore Deployed
One stand. Three retail jobs.
PA-07 brings the price story, device charging and anti-theft alarm together in one slim phone display. Customers see the information they need. Staff manage one cleaner fixture. Your product remains the hero.
Paper labels, no ESL system required OEM / ODM available
3-in-1Price tag · Alarm · Charging
85 × 50 mmApproximate paper label area
90 dBNominal local alarm
17 mmSlim body profile
CE · FCC · RoHSExport-ready compliance
Why PA-07
Stop treating price, power and protection as three separate fixtures.
Conventional phone counters often combine a security stand, a loose price card and a charging cable from different systems. PA-07 consolidates the customer-facing essentials into one consistent footprint.
02
Keep live devices powered
Connector options support display charging so shoppers can experience a working phone instead of a dead demo unit.
03
Protect the demonstration
Contact and cable monitoring provide a local alarm response while the coiled lead preserves hands-on customer interaction.

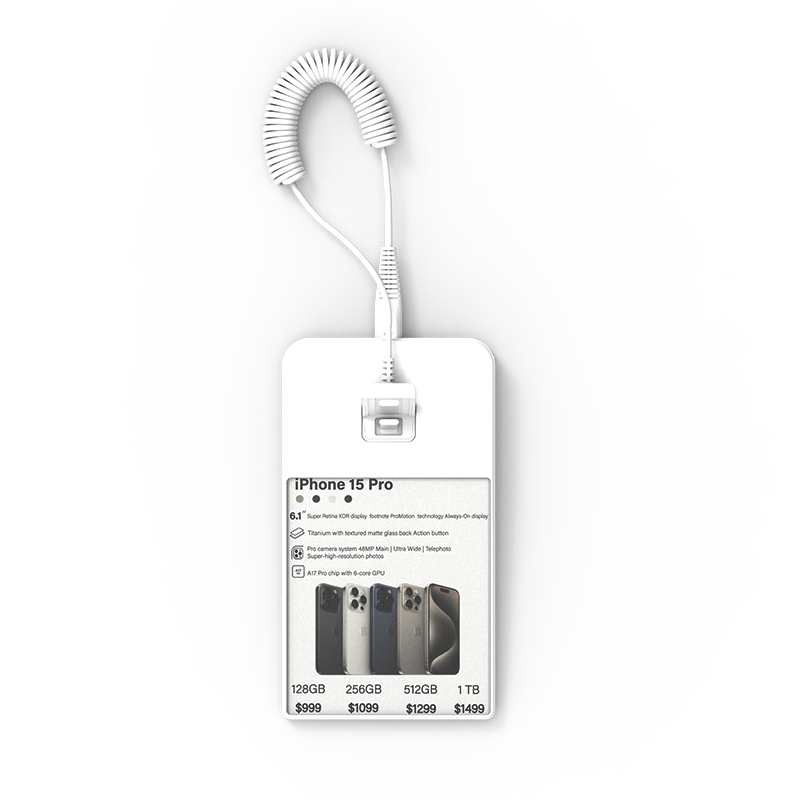

A better paper label
Professional presentation without an ESL rollout.

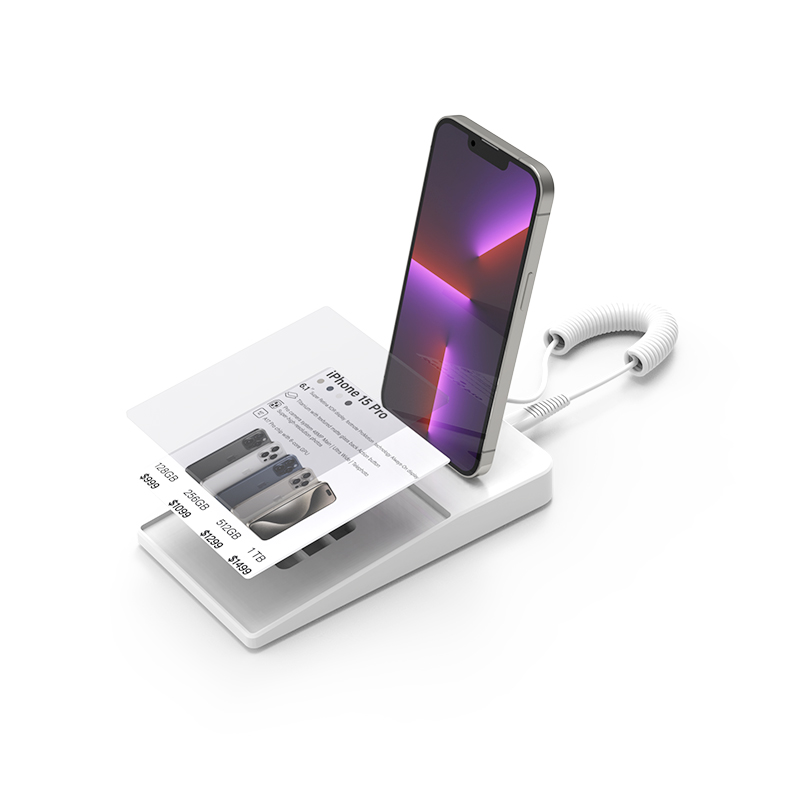

PA-07 is intentionally designed for replaceable paper labels. Your team can print a store-specific card, trim it to fit, slide it beneath the acrylic cover and update it in seconds. There is no gateway, software license or label battery to maintain.
- Clear acrylic cover
Protects the label and creates a finished retail appearance. - Fast campaign changes
Replace prices and promotions without changing the security hardware. - Store-controlled design
Use brand colors, comparison icons, finance offers or local-language content.
Security logic
Simple for staff. Immediate when disturbed.
The stand monitors the physical connection points that matter on a live display. A compatible IR decoder is used at close range to release the alarm.
Device contact removedAlarm triggers if the sensor is pulled away from the displayed device.
Cable cut or disconnectedAlarm triggers if the monitored cable path is interrupted.
Close-range IR releaseCompatible K07 or K06 decoder; recommended remote distance within 30 cm.
Watch PA-07
See the product and installation before you specify it.
Use the full installation guide for staff training and fixture planning, then watch the short product presentation for a quick view of the complete PA-07 concept.
Installation guide
Install and prepare PA-07 for the sales floor
Follow the complete setup process for the stand, sensor, power connection and displayed device.
Product short
PA-07 at a glance
Phone and earbud display formats in one quick product presentation.
Singapore retail case
Where product information became part of the security fixture.
In this Singapore electronics retail deployment, PA-07 units support live Sharp AQUOS phones across a busy multi-brand environment. The fixture keeps each device aligned with its own specification and price card while preserving a hands-on demo experience.
Real store deployment · SingaporeIndividual product, price and specification cards are integrated into the front of each PA-07 stand.
Each phone remains visually tied to the correct model information and price, reducing ambiguity on a crowded counter.
Paper inserts allow local retail teams to update promotion language and pricing without replacing the stand.

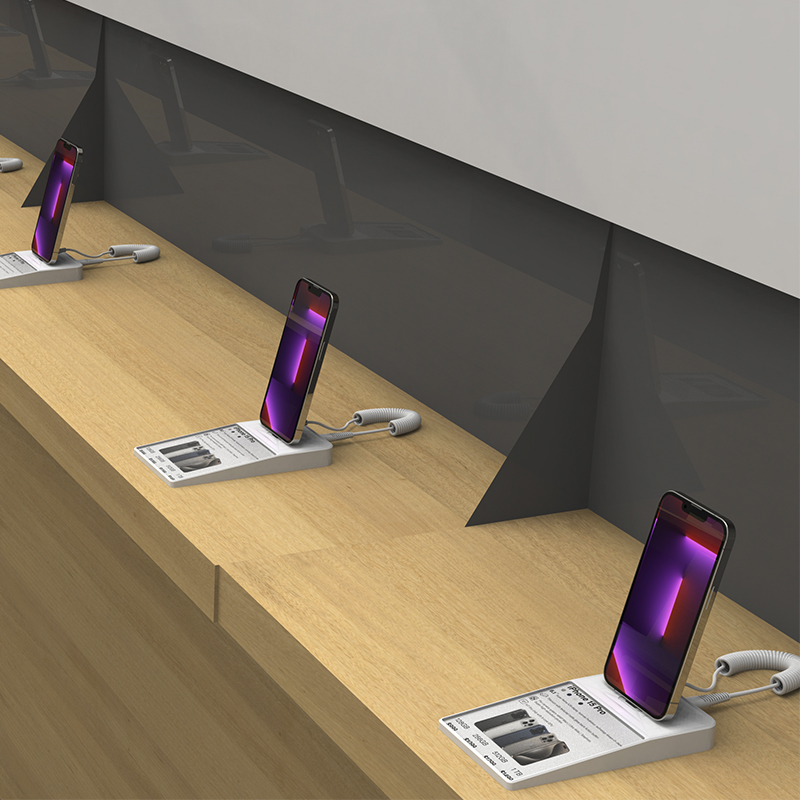

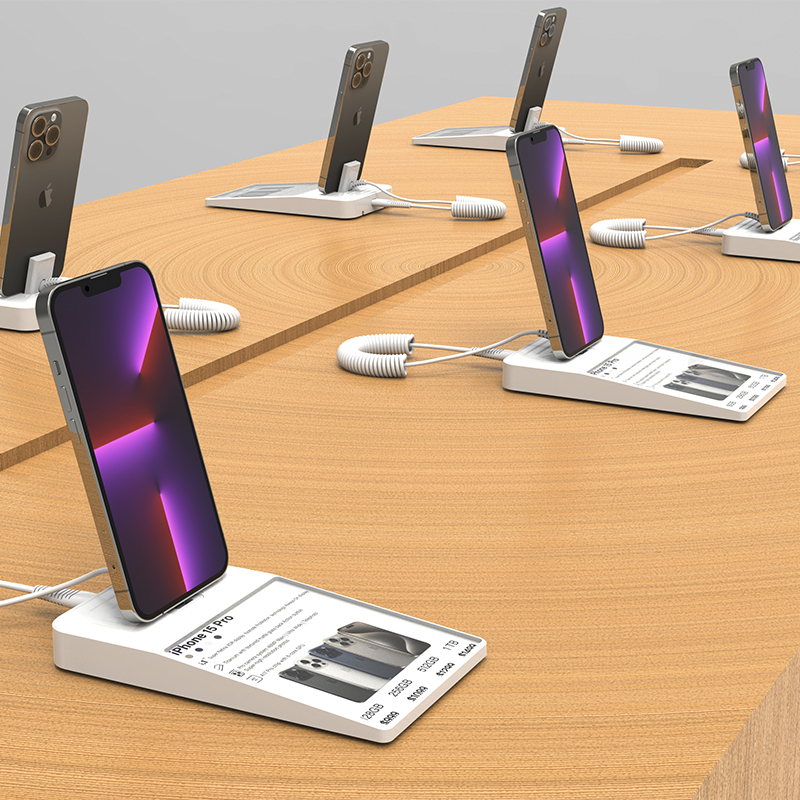

A repeated footprint creates a more deliberate product line-up across different devices and price points.

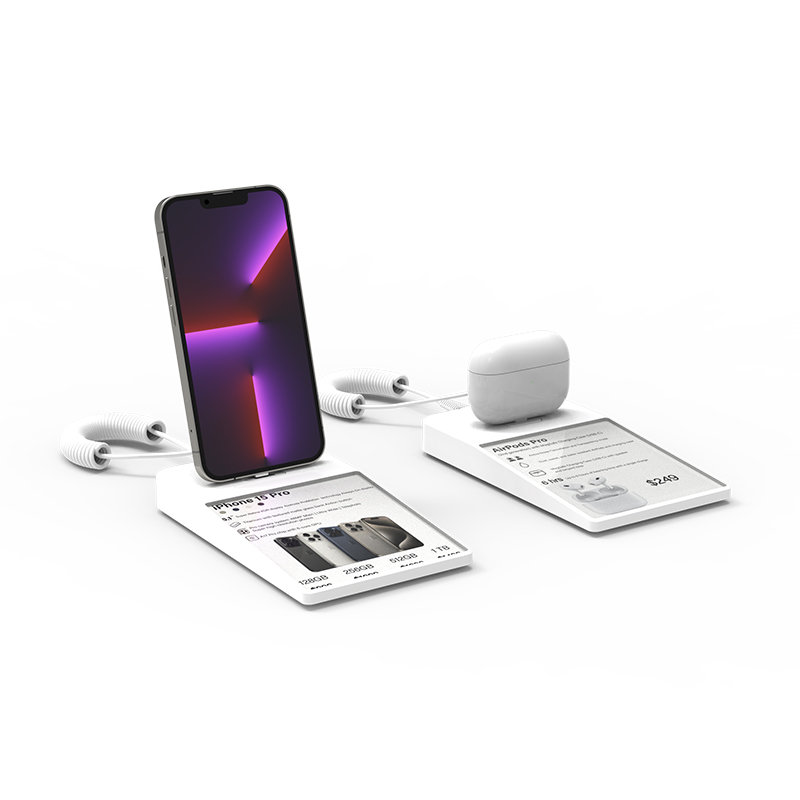

Choose the format
One visual system for phones or TWS earbuds.
The PA-07 family uses the same price-first display idea with device-specific power and presentation configurations.

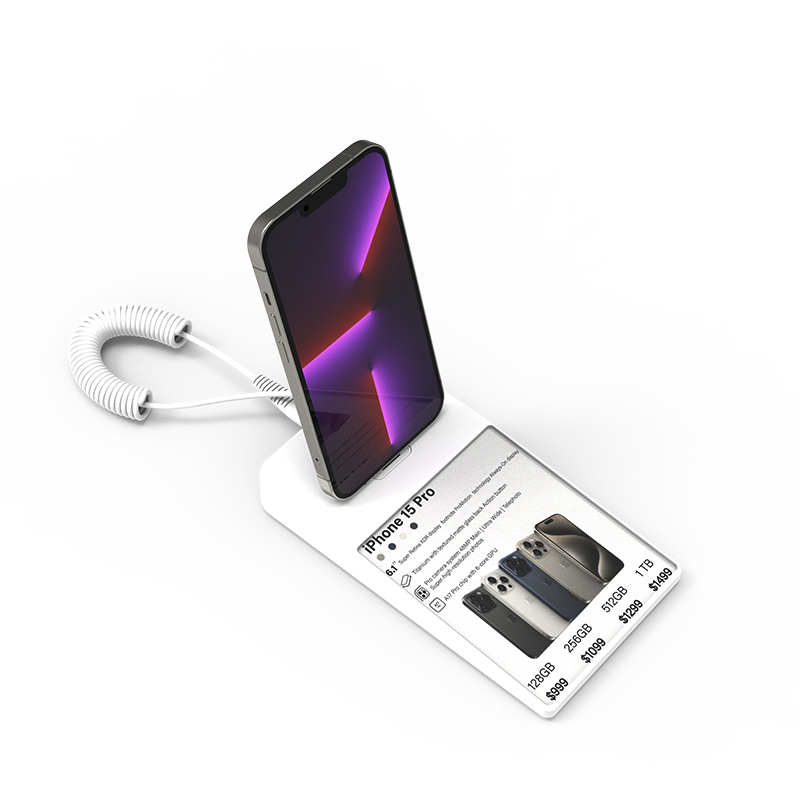

For smartphones
A 75° phone presentation angle with connector options for common mobile devices.
- Input
- 5.5V / 2A
- Output
- 5V / 0.5–2A
- Connectors
- Micro-USB, USB-C, Lightning
- Display angle
- 75°

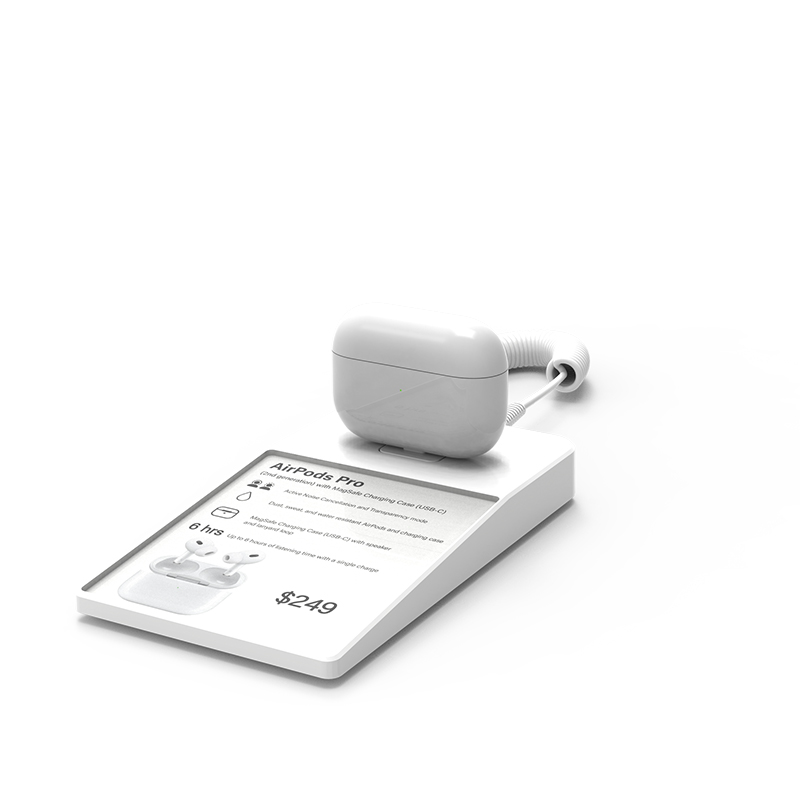

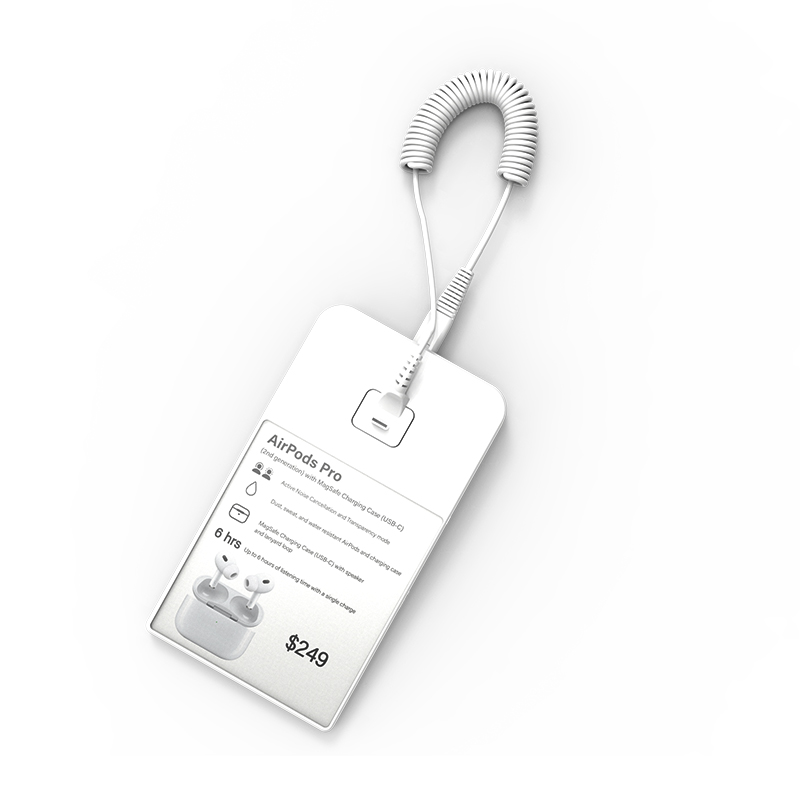

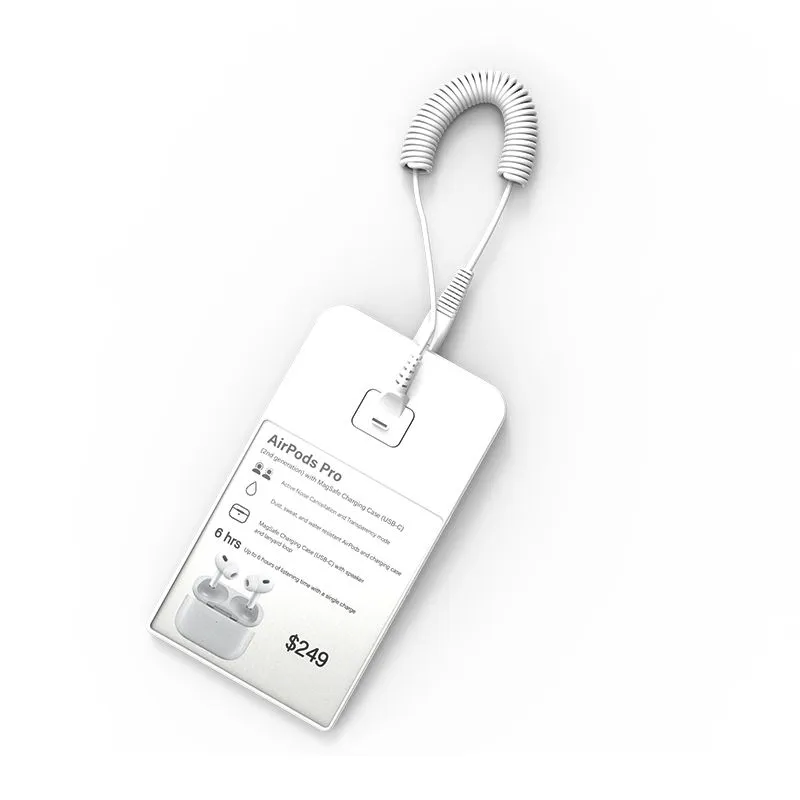

For TWS earbuds
A 90° display configuration designed to present and secure true wireless earbud products.
- Input
- 5V / 1A
- Output
- 5V / 0.5–1A
- Connector
- USB-C
- Display angle
- 90°
Project specifications
What your fixture team needs to confirm.
| Specification | PA-07 Series | Project note |
|---|---|---|

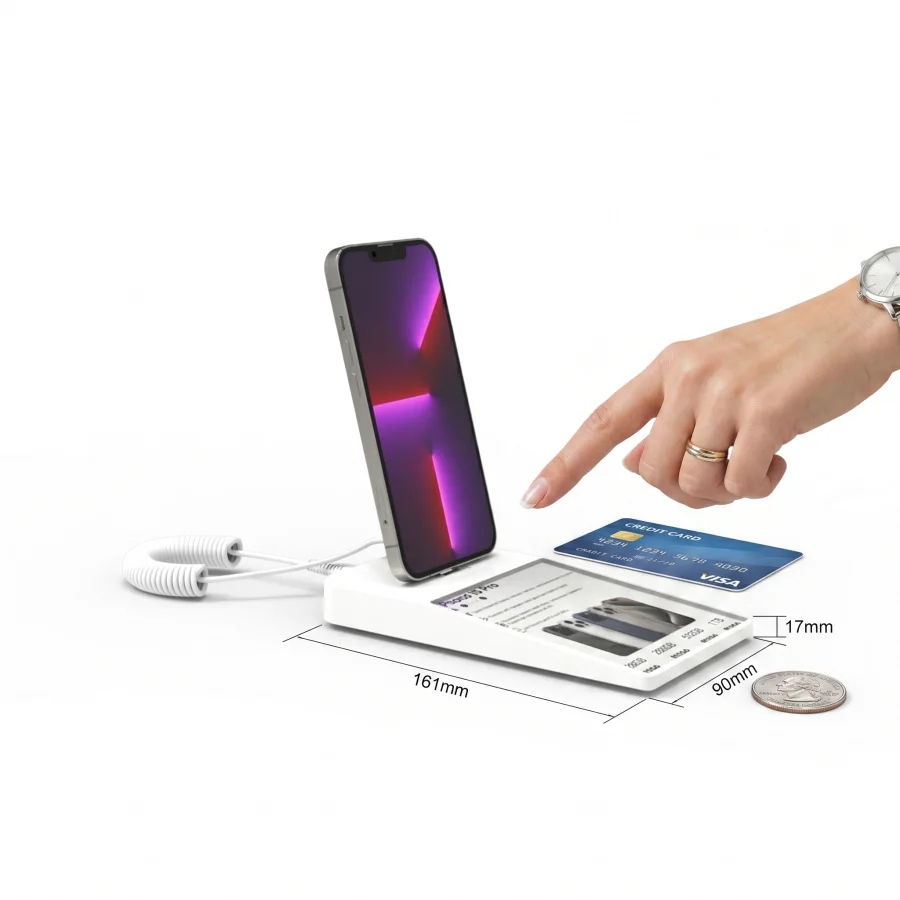

| Body size | 161 × 90 × 17 mm | Confirm available counter depth and spacing. |
| Material | ABS body + acrylic label cover | Standard color is white. |
| Paper label | Up to approximately 85 × 50 mm | Trim the printed card to the final slot fit. |
| Alarm output | 90 dB nominal | Local alarm; confirm store response procedure. |
| Decoder | K07 (5:1) or K06 (1:1) IR | Close-range operation within approximately 30 cm. |
| Installation | Adhesive base | Clean the surface and apply pressure for at least 10 seconds. |
| Carton quantity | 50 units | Standard carton recommended; MOQ negotiable. |
Buyer FAQ
Questions to settle before a PA-07 rollout.
Is the price display electronic?
No. PA-07 is designed for a replaceable paper label under a clear acrylic cover. This avoids the infrastructure and recurring management required by electronic shelf labels.
What information can go on the label?
Retailers commonly include model name, key specifications, color or memory variants, price, promotion details and financing information. The design is controlled by your store team.
Can staff remove the phone every night?
Yes. After disarming the stand with the compatible IR decoder, staff can use the daily-removal connector and place the device in secure storage.
Does the stand work with every phone?
PA-07M supports several connector options, but the exact device, charging port, output requirement and sensor position should be confirmed before ordering.
Can the label and product be customized?
Label artwork is customer-supplied and can be changed locally. OEM / ODM options for larger projects are available subject to specification review and order quantity.
Turn every display point into a clearer selling point.
Send us your device list, store format, required quantity and label layout. We will recommend the PA-07 model, connector and decoder configuration for your project.
